Two-shot molding vs overmolding, are two different molding types with unique advantages to meet different design needs for custom components production. Injection molding is a widely used modern manufacturing, serving as a versatile and efficient method for producing a wide range of plastic parts across numerous industries. There are many different injection molding types. By understanding the informed decisions to optimize their manufacturing strategies and deliver superior products to market. In this article, we will explore and compare two types of injection molding: two-shot injection molding and overmolding.
What is Two-shot Injection Molding?
Two-shot injection molding, also known as dual-shot or multi-shot molding, is an advanced manufacturing process that enables the creation of complex plastic parts with multiple materials or colors in a single operation. Unlike traditional injection molding, which typically involves injecting one material into a mold cavity to form a part, two-shot injection molding involves injecting two different materials sequentially or simultaneously to produce a single, integrated component.
Two-shot injection molding, also known as dual-shot, multi-shot, or double-shot molding, is a subcategory of injection molding that allows engineers to create multi-material or multi-colored parts in a single manufacturing cycle.
Two-shot injection molding involves two distinct phases:
- The first material is injected into a mold to create the substrate or base component. This substrate is then allowed to cool and solidify.
- The substrate is then transferred (by hand, robot arm, or rotary plane) to a second mold cavity. The mold opens, rotates 180° and a second material is injected onto, around, or through the first substrate material. The two materials bond together to form the final multi-component part.
Key Two-Shot Molding Characteristics
- Allows combining two or more different plastic resins or colors into a single part during one machining cycle.
- Enables the creation of complex geometries and designs by utilizing the desired properties of each material.
- Produces strong bonding between the materials and high repeatability with tight tolerances.
- Consolidates multiple components into one integrated part, reducing assembly costs.
- Suitable for high-volume production runs due to efficiency and part consolidation benefits.
The Advantages of Two-shot Injection Molding
Cost-effective production: It allows multiple components to be molded in a single machine cycle, reducing labor costs and increasing efficiency.
Reduced Assembly Requirements: Two-shot injection molding allows for the creation of complex parts with multiple materials or colors in a single operation. By integrating components that would otherwise require separate manufacturing steps and assembly processes, two-shot molding reduces the need for manual labor and assembly time, lowering overall manufacturing costs.
Improved Part Quality and Durability: The process creates a strong bond between the two materials, and eliminates the risk of delamination, warping, or material separation then resulting in high durability and repeatability with tight tolerances. So the parts have lower scrap rates compared to other molding processes.
Enhanced aesthetics and ergonomics: Multi-color and multi-material parts have improved visual appeal.
Enhanced Design Flexibility: With two-shot injection molding, allows creation of complex geometries and innovative designs not possible with single-material molding. By combining different materials with distinct properties, such as rigid and flexible plastics or soft-touch and hard surfaces, soft-touch overmolded grips and surfaces provide better ergonomics, especially for hand-held products.
Efficient sealing: The process is suitable for creating airtight seals, gaskets, and membranes by combining rigid substrates with flexible overmolded materials.
Reduced cycle times: Complete parts can be produced quickly in a single cycle, faster than alternative overmolding or insert molding processes.
The Disadvantages of Two-shot Injection Molding
The main disadvantages are the high upfront tooling costs, potential design restrictions due to material compatibility requirements, and long setup lead times compared to single-material molding.
High tooling costs: The upfront costs for designing, testing, and tooling are significantly higher compared to single-material injection molding. This is due to the need for specialized multi-cavity molds, rotating mechanisms, and multiple injection units.
Long setup lead times: Setting up the two-shot molding process takes longer than standard injection molding. Extensive testing and adjustments are required to ensure proper material compatibility, bonding, and alignment between the two shots.

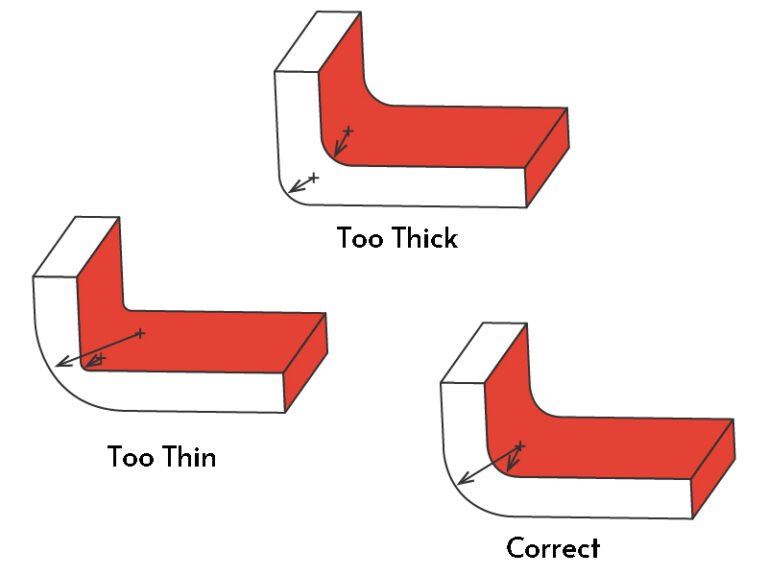

Design restrictions: Parts must be designed with injection molding considerations like uniform wall thickness, draft angles, and avoiding undercuts.
Limited Material Options: While two-shot injection molding offers versatility in combining different materials within a single part, not all materials are compatible for use in two-shot molding, the two materials must be compatible for proper bonding, limiting material choices.
Difficulty in making design changes: Since the molds are typically made of steel or aluminum, it can be challenging and costly to make design changes once the tooling is finalized.
Potential for defects: Two-shot injection molding involves the use of different materials with distinct properties, such as hardness, melt temperatures, and shrinkage rates. Improper sealing between the two shots can lead to defects like flash, curling, fraying, or peeling at the shut-off areas. Weak bonding between the materials can also occur if they are incompatible.
Limited suitability for low-volume production: The high tooling costs make two-shot molding less economical for low-volume or prototype runs compared to overmolding or other processes.
While two-shot molding offers advantages like part consolidation, improved aesthetics, and design flexibility, the higher upfront investment and potential for defects are significant drawbacks, especially for low-volume or prototype applications.
What is Overmolding?
Overmolding is a specialized injection molding process where a single part is created by molding one material (typically a substrate or base material) over another material (referred to as the overmold or topcoat). This process allows for the integration of multiple materials with different properties into a single, cohesive component.
A base component or substrate is first molded from one material, often a rigid plastic. This substrate is then transferred to another mold cavity where a second, often softer or more flexible, material is injection molded over, around, or through the first substrate. The two materials bond together, either chemically or through mechanical interlocking, forming a single multi-material part.
The Advantage of Overmolding Over Two-shot Molding
The main advantages of two-shot overmolding are the stronger chemical bonding between materials, higher repeatability, tighter tolerances, and suitability for high-volume production where the higher tooling costs can be justified.
Lower tooling costs: Overmolding can be done on standard injection molding machines, requiring less specialized and expensive tooling compared to dedicated two-shot molding equipment. This makes overmolding more cost-effective, especially for low-volume production runs.
Simpler process: Overmolding involves two separate molding cycles, while two-shot molding is a more complex single integrated cycle requiring precise alignment and material compatibility. The simpler overmolding process is easier to set up and has a shorter lead time.
More flexible material choices: In two-shot molding, the materials must be carefully selected for compatibility to achieve a strong chemical bond. Overmolding allows for a wider range of material combinations as the bond is primarily mechanical.
Better for prototyping and low volumes: The lower tooling investment makes overmolding better suited for prototyping, low-volume production runs, and applications where design changes may be required.
Tolerances: While two-shot molding generally provides tighter tolerances, overmolding can still achieve acceptable tolerances for many applications at a lower cost.
The Disadvantages of Overmolding Over Two-shot Molding
The main disadvantages of overmolding compared to two-shot molding are:
Weaker bonding between materials: In overmolding, the bond between the substrate and overmolded material is typically mechanical interlocking rather than a strong chemical bond. This increases the risk of delamination or debonding over time, especially if the materials are incompatible.
Lower tolerances and precision: Two-shot molding generally provides tighter tolerances and better precision in aligning the two materials compared to overmolding. Overmolded parts often have inferior tolerances.
Multiple production steps: Overmolding involves two separate molding cycles – first molding the substrate, then overmolding the second material. This increases the overall cycle time compared to the single integrated cycle of two-shot molding.
Additional equipment required: Overmolding requires separate mold tools for the substrate and overmolding steps, as well as additional equipment like transfer mechanisms. Two-shot uses a single specialized mold.
Material compatibility constraints: In two-shot molding, a wider range of material combinations can be used as they chemically bond. Overmolding has more constraints on plastic compatibility to achieve a strong mechanical bond.
Less suitable for high volumes: The multiple steps, additional equipment, and potential for defects make overmolding less efficient and economical for high-volume production runs compared to two-shot molding.
Two-shot Molding Vs Overmolding
Overmolding and two-shot molding are similar in that they both involve the injection of multiple materials to create a single part. However they are not the same process. The key differences between overmolding and two-shot molding are:
Number of cycles: Two-shot molding is a single, integrated cycle where both materials are molded together in the same machine. Overmolding involves two separate molding cycles – first molding the substrate, then overmolding the second material onto the substrate in a separate step.
Tooling: In two-shot molding, a single mold with two cavities and a rotating mechanism is used. Overmolding requires two separate mold tools – one for the substrate and another for the overmolding step.
Material bonding: In two-shot molding, the two materials form a chemical or molecular bond during the single molding cycle. In overmolding, the bond between materials is typically mechanical interlocking rather than a chemical bond.
Production volumes: Two-shot molding is more suitable for high-volume production runs due to higher efficiency and part consolidation benefits. Overmolding is better suited for lower-volume or prototype production.
Cost: The tooling costs for two-shot molding are generally higher upfront compared to overmolding, which can use standard injection molding equipment.
Conclusion
The comparison between two-shot injection molding and overmolding reveals two distinct but complementary manufacturing processes, each offering unique advantages and applications. Ultimately, the choice between two-shot injection molding and overmolding depends on factors such as part complexity, material requirements, production volume, and cost considerations. Working with experienced Manufacturers and making informed decisions for your projection.
