Zhongde Overmolding and Insert Molding Service
Zhongde, a reputable on-demand manufacturer in China, provides insert molding & over-molding services and produces unique multi-material parts. Both over-molding and insert molding injection processes involve putting two types of materials together to make one part, and the inserts can be threaded metal inserts. This ensures a seamless combination of multiple plastic parts to give a uniform and durable product.

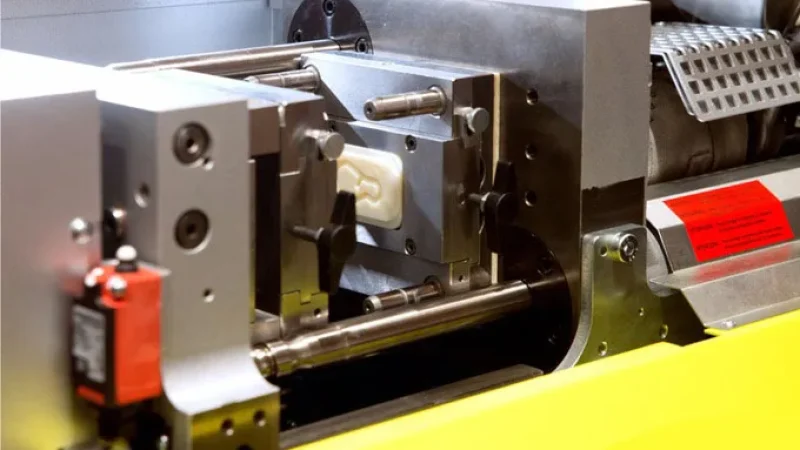

Injection Molding From Prototyping to Production

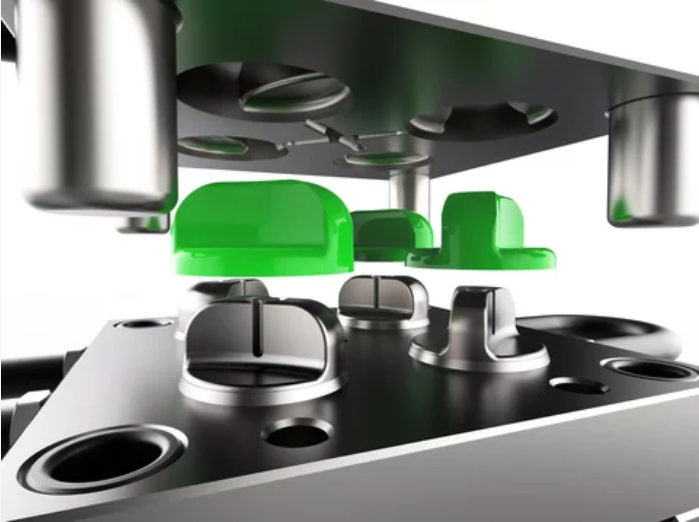

Tooling Service of Overmolding and Insert Molding
Zhongde is an on-demand manufacturer from mold designing and rapid prototyping to mass production. We offer custom mold-making, prototype tooling, and production tooling services. Our experienced team utilizes advanced CAD/CAM software and state-of-the-art equipment to injection mold design, mold making, and maintain molds with exceptional precision and durability for high-quality custom molded parts. Check our injection molding capabilities and tooling services below.
| Item | Details |
|---|---|
| Injection Molding Service Options | Prototyping & on-demand manufacturing |
| Insert Molding | Inserts are placed into the mold and molding occurs around them. This allows for inserts such as helicoids to be molded in your design. |
| Overmolding | Premade parts are placed into the mold to mold over them. This allows for multi-material injection molding. |
| Mold Material | Steel P20, H13, S136, 2316, 2344, 083, 718H, SKD618, etc. |
| Production Tooling | Traditional molds, used for mass production. |
| Mold Type | Family molds, Single cavity molds, multi-cavity molds, two plate molds and three plate molds. |
| Mold Storage | Stored for 3 years in inactivity |
| Guaranteed Mold Life | Unlimited |
| Mold Remachining | We can re-machine the molds if there are any changes required, basis on mold structure. |
Available Size of Overmolding and Insert Molding Service
The below table shows the regular size of the custom insert molding parts and overmolded parts. If you need a larger size or other unique requirements about the size, Zhongde as a professional China precision injection molding manufacturer, can also help you achieve it at a competitive price.
| Size | Metric | Inch |
|---|---|---|
| Length | 2500 | 98.4 |
| Width | 2000 | 78.7 |
| Height | 1500 | 59 |
Materials of Overmolding and Insert Molding
At Zhongde, we not only offer a wide range of molding materials but also provide additives to meet special requirements. Our professional material expert can customize the most cost-effective materials to meet your specific needs. There is our injection molding materials and additives list for your reference.
The General materials listed below are for custom insert and overmolded plastic injection.
- ABS
- HDPE
- PA6/6
- PTFE
- PP
- PC
- PE
- PS
- PA6
- POM
- LDPE
- PVC
- PU
The general rubber overmolding and insert molding materials are listed below:
- EPDM
- PVC
- TPU
- Silicone
- TPE
- TPV
The preformed and inserts metal materials are listed as below:
- Aluminum
- Carbon Steel
- Brass
- Stainless Steel
- Copper
Surface Finishing of Overmolding & Insert Molding
Injection molding surface finish is critical to a successful part design and it is used for aesthetic and functional reasons in injection molded parts for engineering products. The surface finish improves the look and the feel of a product as the perceived value and quality of the product increase with a suitable surface finish.
Glossy
A-grade finish is smooth and highly reflective, giving the product a shiny appearance. It’s often used for products where aesthetics are important.
Semi-glossy
The B-grade finish is less reflective than glossy but still has a smooth and somewhat shiny appearance.
Matte
C-grade finish is non-reflective and has a dull appearance. It’s often chosen for parts where glare or light reflection is undesirable.
Textured
D-grade finishes are intentionally rough or patterned. They can provide a better grip or a unique appearance to the product.
Overmolding vs Insert Molding
Overmolding process and insert molding process are two specialized injection molding techniques used to combine multiple materials or components into a single molded part. Here’s a comparison and explanation of the two processes:
Molding Cost: Both overmolding and insert molding can accelerate production and reduce assembly costs which generate greater profits for high-volume orders. However, overmolding process may require additional material and labor as it involves two steps, making it potentially more expensive than insert molding process.

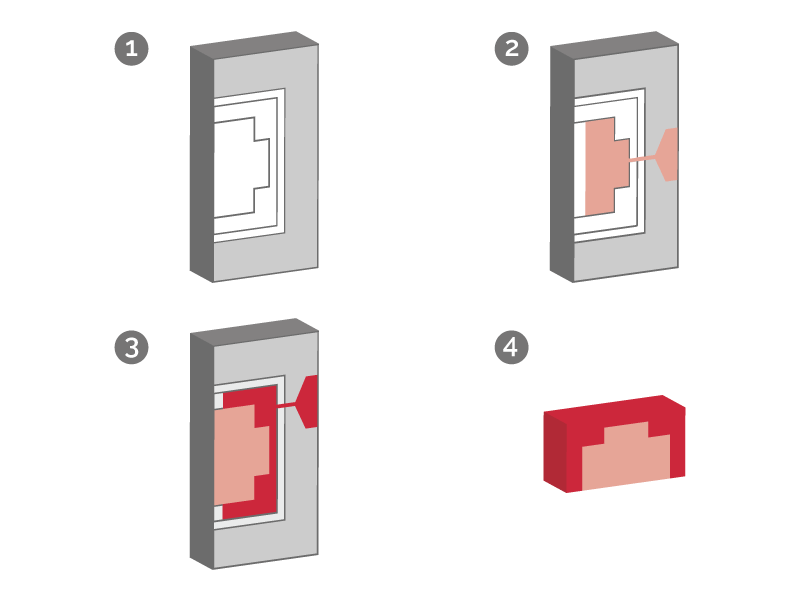

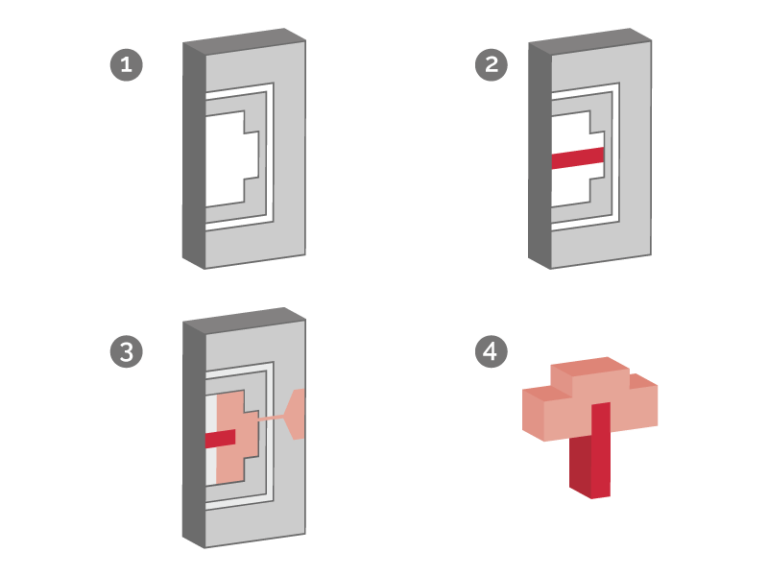

Molding Process: Overmolding is a two-step process that involves injecting two-shots of resins to form the substrate and the overmolding. Insert molding is a one-shot injection molding process, but the metal insert needs to create in advance.
Material Compatibility: The overmolding process often involves using different materials with compatible bonding properties. The insert molding process can accommodate a wide range of inserts, including metal, plastic, or electronic components.
Both overmolding process and insert molding process provide unique benefits depending on the application requirements, offering improved functionality, reduced assembly processes, enhanced aesthetics, and cost savings. The choice between the two techniques depends on the desired outcome, design considerations, and specific project needs.
Injection Molding

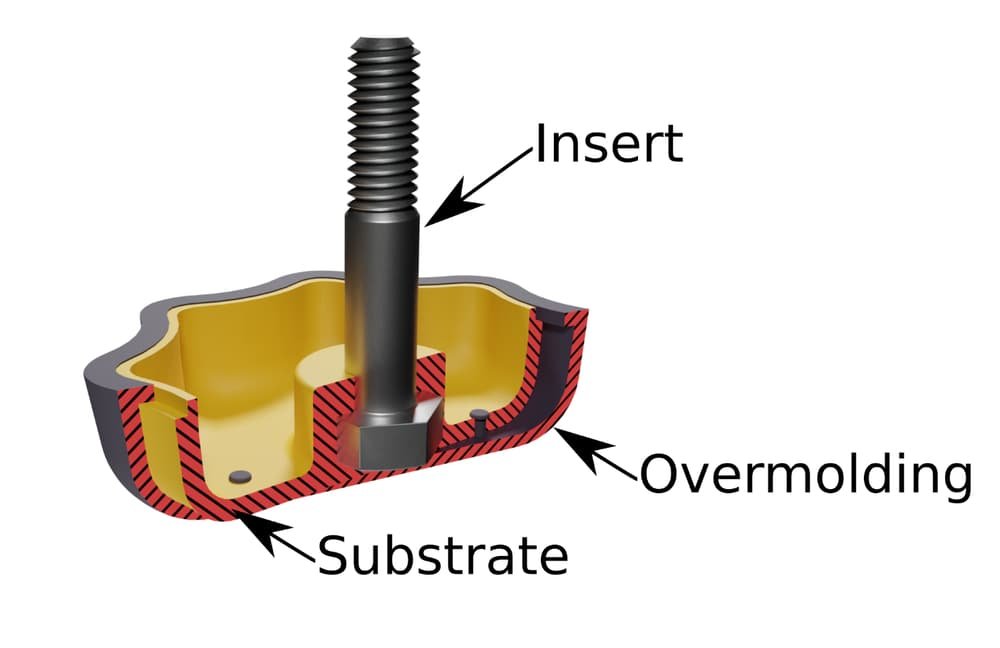

All You Need to Know About Overmolding
Every day we come across tools, parts, and objects manufactured using overmolding. Manufacturers use over-molding to create tools, replace machine parts, and even manufacture toys. ...

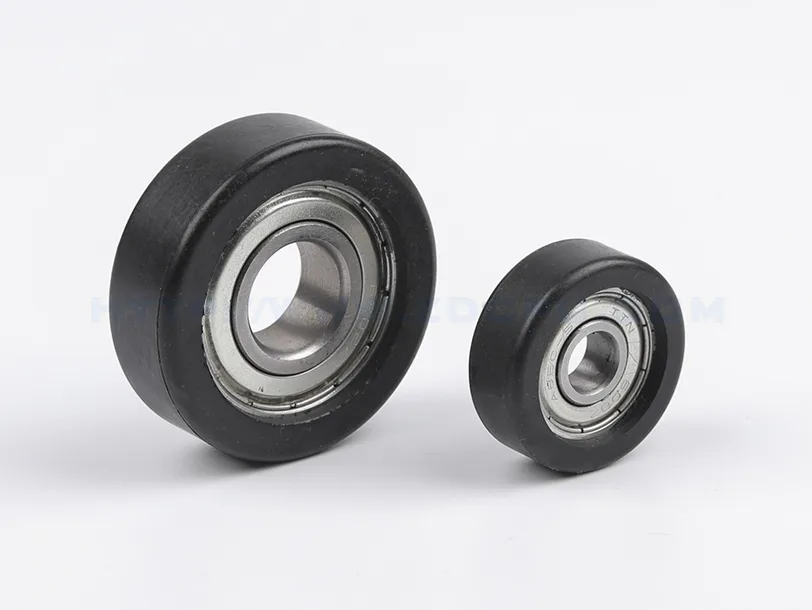

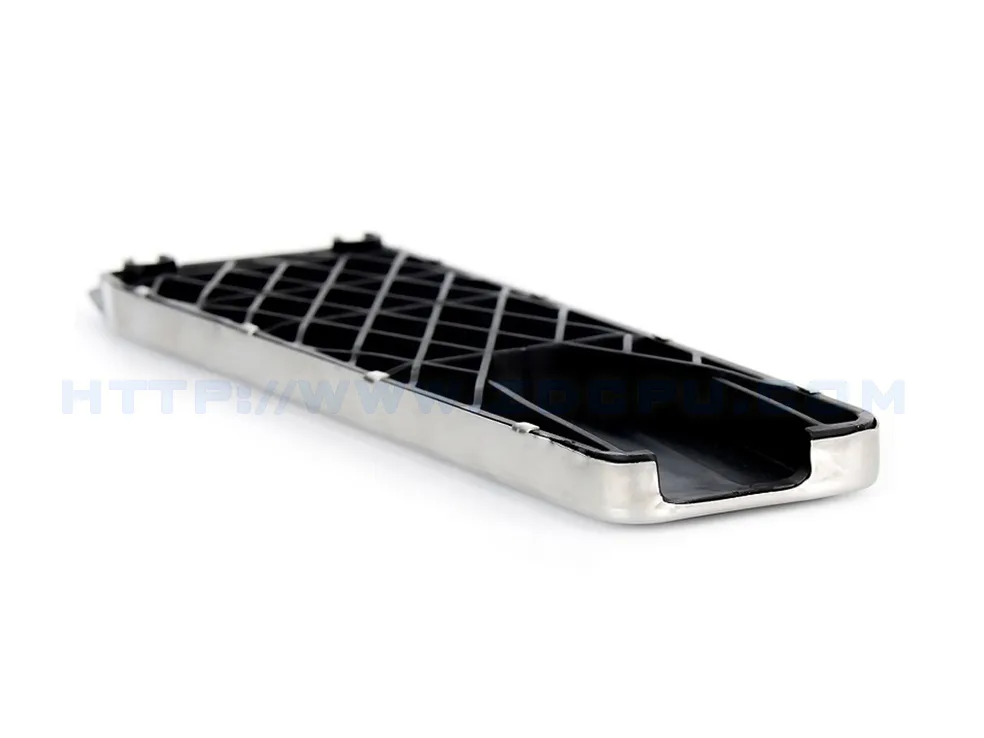

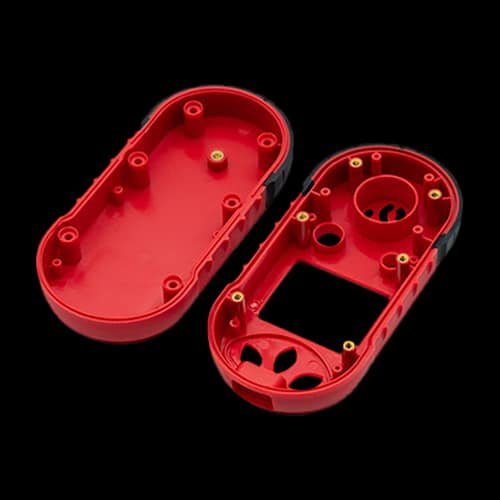

Related Products of Overmolding and Insert Molding
Why Choose Zhongde for Your On-Demand Manufacturer
Zhongde has extensive experience, advanced equipment, and a commitment to quality. We offer competitive pricing, fast turnaround times, and excellent customer service. With a skilled team and state-of-the-art facilities, we ensure precise and reliable production. Whether you need rapid prototyping or high-volume on-demand manufacturing, Zhongde is your trusted partner for custom injection molding solutions.
Cost Effective
Our injection molding tooling start at $500, easy for you to step into a new injection molding project. We always finding better solutions to lower overall custom molding costs, and let our customers have a more competitive advantage in the market
Consistency and High Quality
We take care of mold making and injection molding. That means we take full control from material to production. The experienced experts combined with scientific molding technology, ensure the custom products' quality and consistency.
Proven Success
Zhongde has accumulated thousands of happy clients all over the world. Over the 40 years since established, we’ve helped our customers develop and shipped out millions of custom molding parts.
Complete Range of Service
More than tool making and molding service, Zhongde complete production line include every manufacturing process you need for a new project development solution, such as secondary finishing, custom package, finish product assembly, etc.
Start A New Project Right Now!
Our sales team will contact you within 24 hours. We are glad to answer your questions.
FAQs of Insert Molding & Overmolding
View our FAQ center for more questions.
Are there any limitations or considerations when using overmolding or insert molding?
Factors such as material compatibility, design feasibility, and proper part alignment should be considered during the overmolding or insert molding process.
What industries commonly utilize overmolding and insert molding?
Overmolding and insert molding find applications in industries such as automotive, electronics, medical, consumer goods, and more, where product durability and functionality are crucial.
Overmolding and insert molding find applications in industries such as automotive, electronics, medical, consumer goods, and more, where product durability and functionality are crucial.
Yes, existing products can often be retrofitted with overmolding or insert molding to improve their performance, functionality, or aesthetics.
How can I determine if overmolding or insert molding is suitable for my specific product or project?
Consult with our experts who can assess your product requirements and guide you on the feasibility and benefits of utilizing overmolding or insert molding for your project.
